SPECIFICATIONS
NECK
Type:Set Neck, 1-piece MapleWidth:42.5 mm / 1.67″ (nut), 52 mm / 2.05″ (12th fret)
Thickness:21 mm / 0.8″ (1st fret), 24 mm / 0.95″ (12th fret)Shape:Medium D
Fingerboard:Indian Rosewood, radius 305 mm / 12″Inlays:Cream dots
Frets:22 Jumbo 2.8 x 1.0 mm
Scale length:648 mm / 25.5″

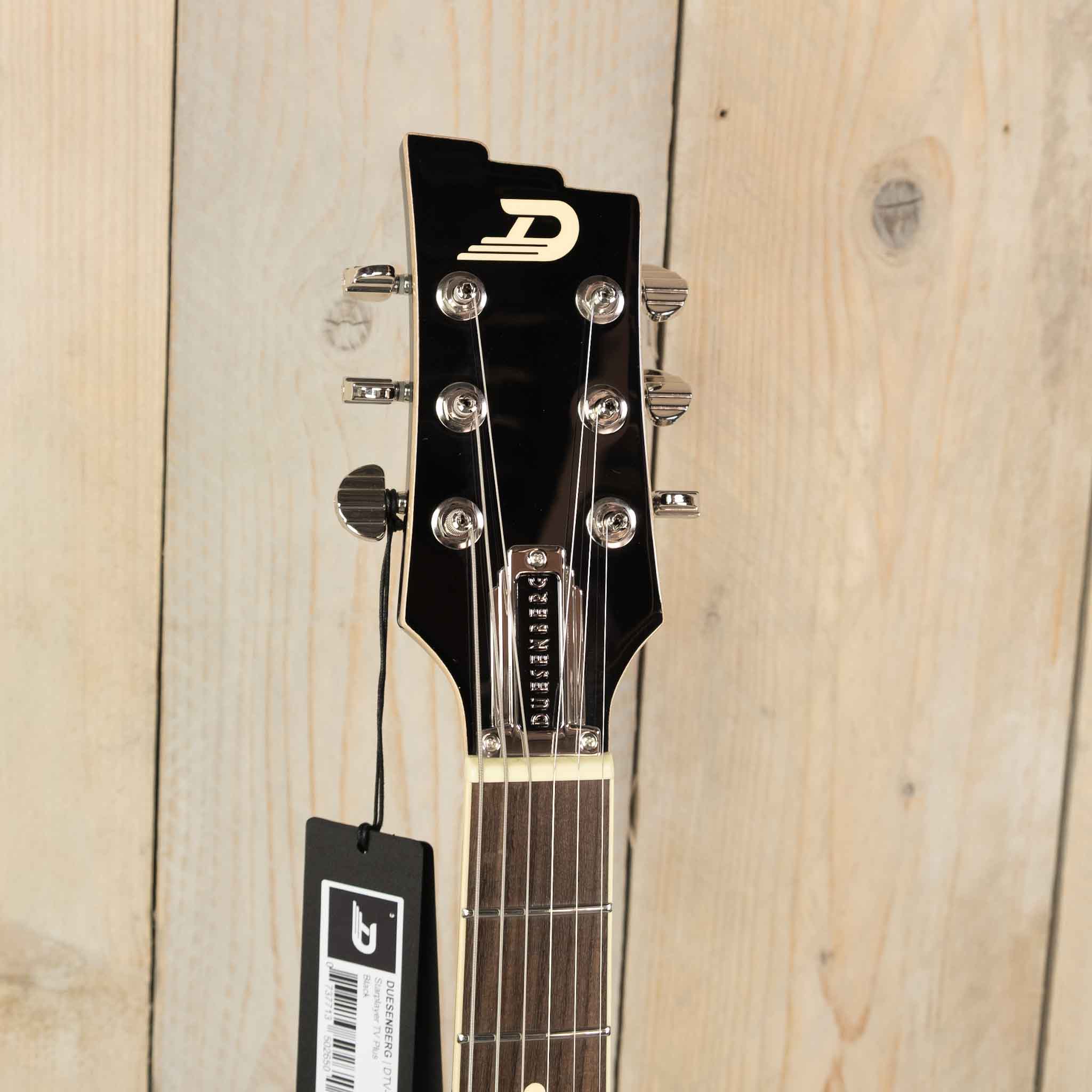

Headstock:Black
BODY
Type:Semi-hollow with sustain block, bent sides, f-hole
Top:Laminated spruce

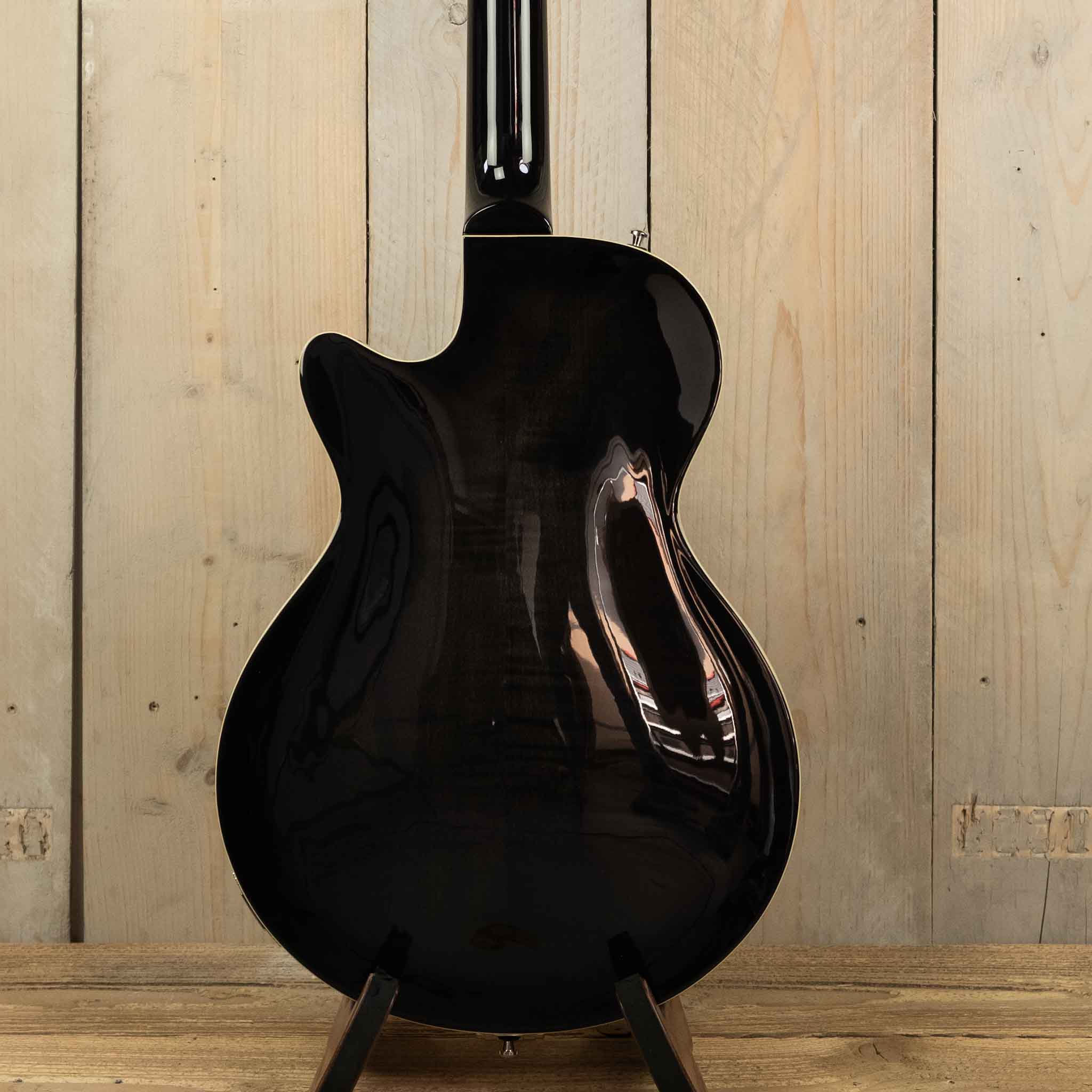

Back, sides:Laminated flamed maple
Dimensions:46 x 34 cm / 18.11″ x 13.38″
Height (sides):4.5 cm / 1.8″
Binding:nickel-plated brass
Finish:PUR lacquer
Back and sides Transparent black
HARDWARE

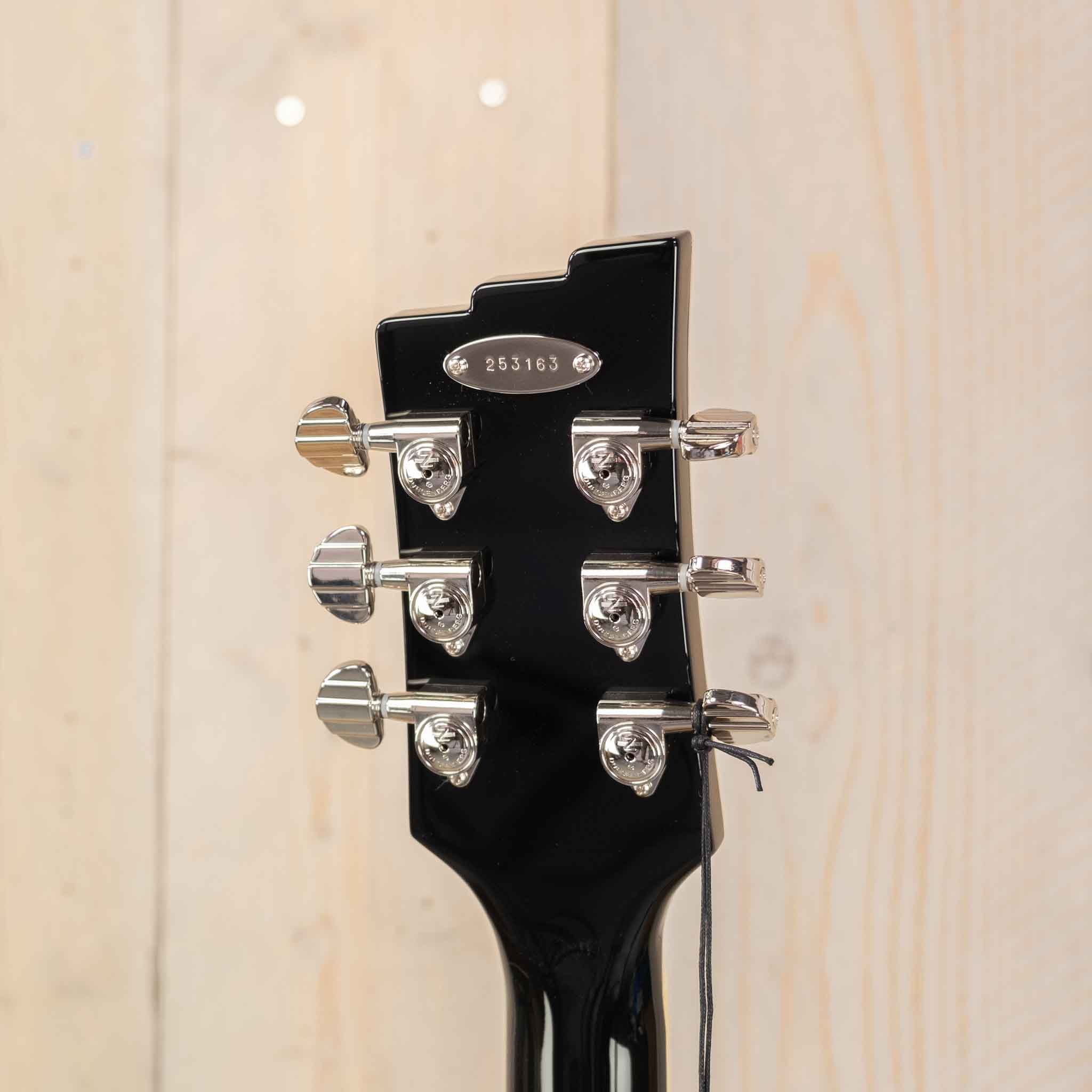

Tuners:Duesenberg Z-Tuners
Bridge:Duesenberg Steel Saddle Bridge
Vibrato System:Duesenberg Diamond Deluxe Tremola (trem models only)
Strap pins:Duesenberg Standard (Straplock compatible)
Hardware finish:Nickel
Strings:Duesenberg Custom 10/50 (010-013-017-028-042-050)

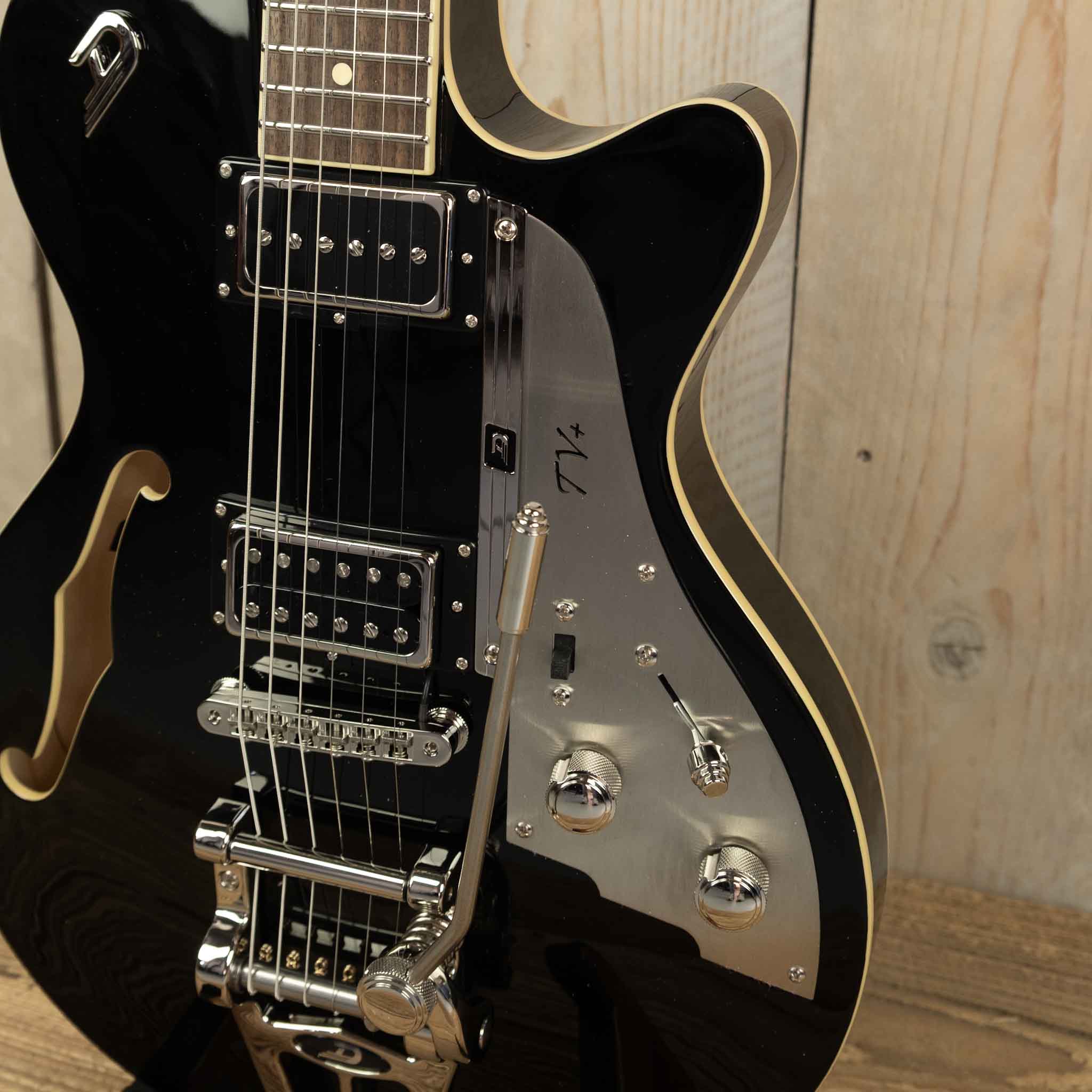

ELECTRICS
Pickup (neck):Duesenberg Domino P90
Pickup (bridge):Duesenberg GrandVintage
Piezo electronics
Switching:1 Volume, 1 Tone, 3-Way Pickup Selector

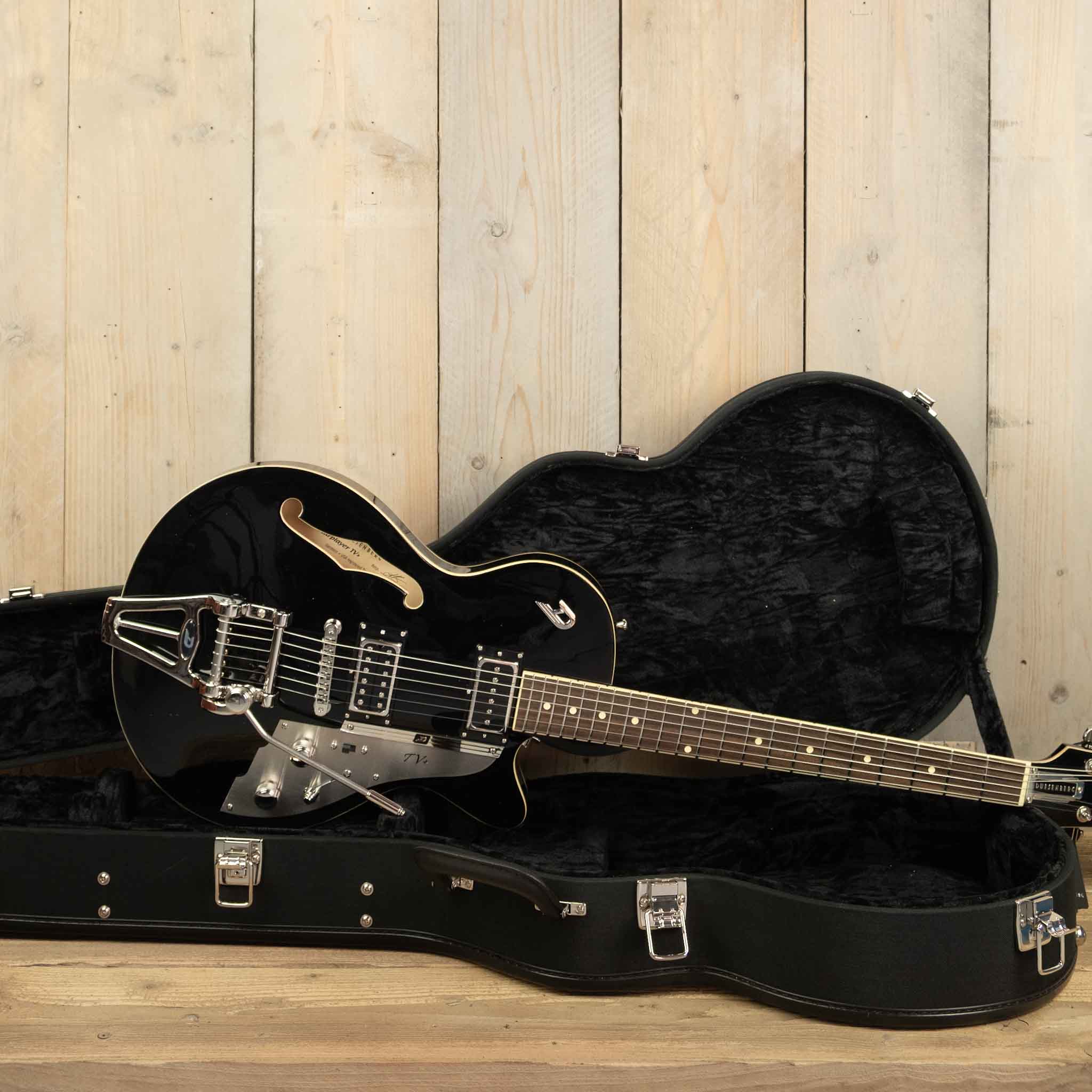

Case (included)Tools:All required allen keys (included)
